Network Panel

The Network Panel records all HTTP requests made by the page, including fetches, XHR calls, stylesheets, scripts, images, and other resources. It combines live captures from JavaScript-initiated requests with the browser's Performance timeline to give you a complete picture of network activity.

Overview

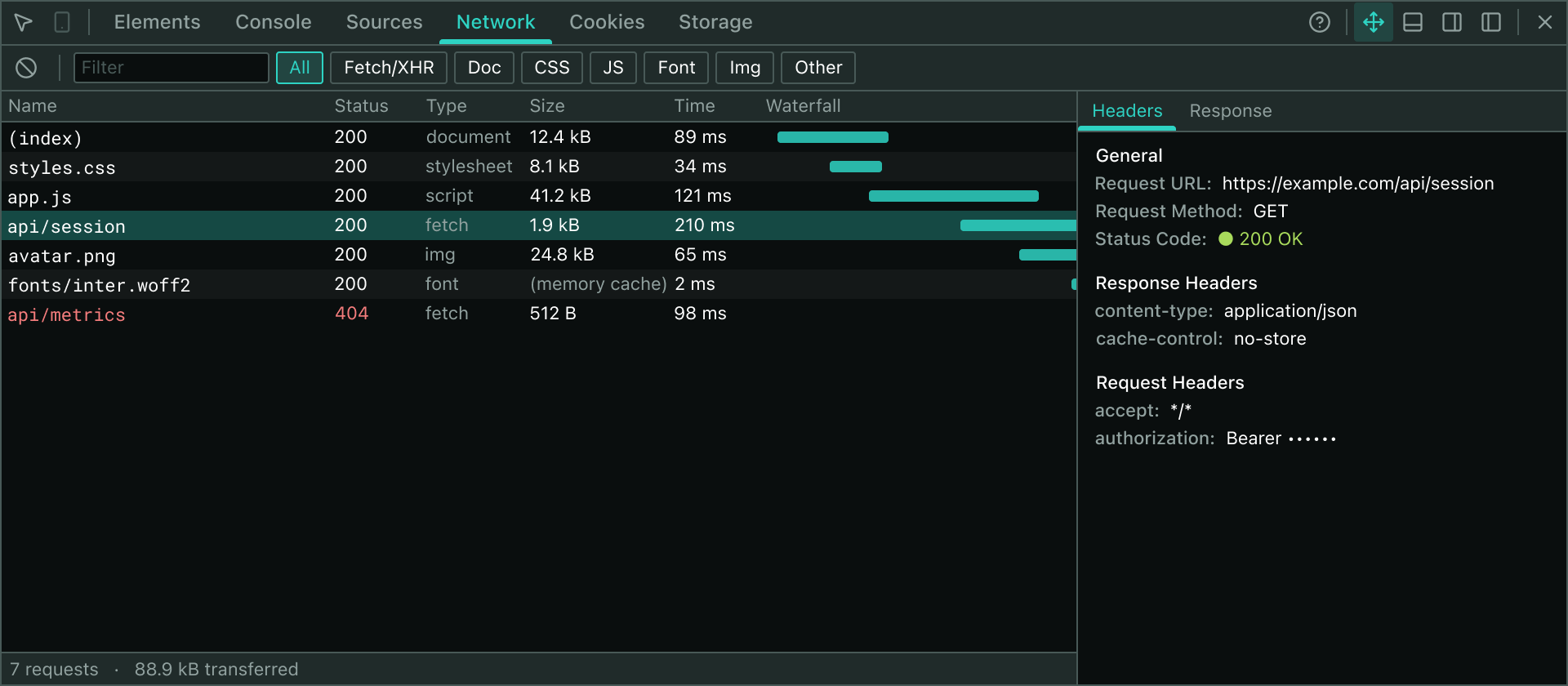

The Network Panel displays a timeline view of all network requests with key metrics:

• Request details — URL, HTTP method, status code, request/response headers
• Performance metrics — transfer size, duration, time-to-first-byte (TTFB)
• Visual waterfall — shows when each request started and how long it took, with a lighter shade indicating time spent waiting for the first byte
• Request bodies — captured request and response payloads (capped at 20 KB each)
• Caching info — identifies cached vs. freshly-fetched resources

Data Sources

The panel combines three sources of network data:

1. Live capture — Intercepts fetch() and XMLHttpRequest calls directly in the page's JavaScript context. This gives you full access to request/response headers and bodies, but is limited to JavaScript-initiated requests only.

2. Performance API — Reads the browser's built-in performance timeline (navigation and resource entries). This captures all requests on the page, including those initiated by the HTML parser (images, stylesheets, scripts), but provides only timing and size data—no request/response bodies.

3. Background webRequest log — The background worker records HTTP method, status code, and headers via the chrome.webRequest API, providing metadata for requests the live capture may miss.

The panel intelligently merges these sources: if a fetch/XHR was captured live, it uses those rich details; otherwise, it falls back to the Performance timeline. The webRequest log is consulted to fill in HTTP method and status for Performance-only entries.

Toolbar Controls

• Refresh () — Re-reads the Performance timeline to pick up any new requests. Useful if the page was loading before you opened the inspector.
• Clear () — Empties the current request list. New requests will still appear as they are made.
• Filter — Type a URL substring to show only matching requests.
• Type filters — Click to show only specific resource types:
  • All — All requests
  • Fetch/XHR — JavaScript fetch/XHR calls
  • Doc — Document (navigation, iframes)
  • CSS — Stylesheets
  • JS — Scripts
  • Font — Font files
  • Img — Images
  • Other — Unclassified resources

Request Grid

The main table shows one row per request with these columns:

Waterfall Interpretation

The waterfall bars use a shared timeline axis:

• Darker section — Time spent downloading (after TTFB).
• Lighter section (if visible) — Time waiting for the first byte (TTFB).
• Reduced opacity — Pending request (not yet complete).
• Red — Failed request.

Hover over a waterfall bar to see the exact timing: start offset (ms from the first request), total duration, and waiting time.

Status Bar

Below the request list:

• Request count — Total number of requests (after filtering).
• Transferred — Total bytes transferred (excluding cached resources).
• Finish — Timestamp (in ms) when the last request completed.

Request Details Sidebar

Click any row to open the details sidebar on the right, showing two tabs:

Headers Tab

Displays request and response metadata:

• General
  • URL — Full request URL
  • Method — HTTP method (GET, POST, etc.)
  • Status — Response status with color indicator and optional error message
  • Duration — Total request time
• Request Headers — Headers sent to the server (truncated at 100 headers and 2 KB per header value)
• Response Headers — Headers received from the server (truncated at 100 headers and 2 KB per header value)
• Cookies — Request and response cookies (if captured)

A note appears for entries where capture data is unavailable (e.g., "Not captured for this request.").

Response Tab

Shows the response body, if available:

• JSON responses are pretty-printed.
• Text bodies are shown as-is.
• Binary or stream responses show a placeholder like (image/png body not captured) or (binary blob, 12345 bytes).
• Truncated bodies are capped at 20 KB; additional data is not shown.

Limitations

• Cross-origin requests without TAO — Time-to-first-byte (TTFB) is unknown for cross-origin resources that lack a Timing-Allow-Origin header; the lighter waiting bar will not appear.
• Request body capture — Only available for live fetch/XHR captures. Document, stylesheet, and image requests do not have their request bodies captured (they are typically empty anyway).
• Response body limits — Capped at 20 KB per request to avoid memory bloat.
• Non-text responses — Binary, Blob, and FormData bodies are not captured; only metadata appears.
• Header limits — Headers are truncated at 100 total per section (request or response) and 2 KB per individual header value.
• Pre-open requests — If the page loads before the inspector is open, early requests appear in the Performance timeline without live capture details. Use Refresh to re-scan.

Common Workflows

Debugging a failed request

1. Look for a red status in the Status column.
2. Click the row to open details.
3. Check the Status line in the General section for the error message.
4. Review Request Headers and Response Headers to verify correct authentication, CORS headers, etc.
5. Check the Response tab for server error details or HTML error pages.

Finding slow requests

1. Sort visually by the Waterfall column—longer bars indicate slower requests.
2. Check the Duration column for the exact time in milliseconds.
3. Use the waterfall tooltip to see the TTFB breakdown: a long light section means the server was slow to respond; a long dark section means download was slow.

Identifying cached vs. fetched resources

1. Look at the Size column for (memory cache) or a byte count.
2. Click the row and check the General section in the details sidebar for cache status.
3. The waterfall bar is rendered at reduced opacity for pending requests.

Filtering by resource type

Use the type filter buttons (CSS, JS, Fetch/XHR, etc.) to focus on specific request categories, then use the text filter to narrow by URL.

Technical Details

The Network Panel integrates three data sources:

1. Fetch/XHR capture — Wraps window.fetch and XMLHttpRequest.prototype to intercept requests and buffer method, URL, headers, and bodies. Emits phased payloads (start → response → body, or error) that are merged by request ID.

2. Performance API — performance.getEntriesByType("navigation") and performance.getEntriesByType("resource") provide timing and size for all resources loaded by the page.

3. Background webRequest log — The background worker records HTTP method, status code, and headers via the chrome.webRequest API, covering requests that the live capture may miss.

Each request is de-duplicated across sources by matching URL and start time. Live fetch/XHR captures include full headers and request/response bodies; Performance and webRequest entries provide timing, size, method, and status only.
